The glue reactor is divided into stainless steel and carbon steel according to its material. Its jacket and inner cylinder are of atmospheric pressure technology, reasonable structure, durable, high temperature resistance, corrosion resistance and convenient use. At present, it has been widely used in petroleum, chemical, rubber, food, scientific research and other industries to complete the process of differentiation, polymerization, condensation, as well as the reaction equipment of organic dyes and intermediates and many other processes.

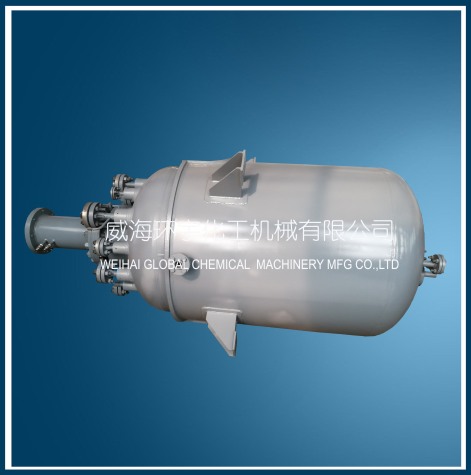

The production of building glue reactor is composed of pot body, pot cover, agitator, heating jacket, support and transmission device, shaft encapsulation device, etc. The body, cover, agitator and shaft seal of the pot are all made of Icr18Ni9Ti stainless steel.
The body and cover of the pot are sealed by flanges. There are discharge holes at the bottom of the pot body and agitators in the pot. The process pipe holes of feeding, stirring observation, temperature and pressure measurement, steam extraction fractionation and safe venting are opened on the lid of the pot.
On the welding bracket of the upper part of the pot cover, the reducer and the motor are installed, and the drive shaft drives the mixer in the pot. The shaft is encapsulated on the top of the pot cover.
The heating jacket is provided with inlet and outlet oil (steam) temperature measurement, exhaust steam valve, electric heating rod and other nozzle holes.
Due to the different production process and operation conditions, users have different requirements for the production of high-pressure reactor, multi-functional autoclave cover process opening, mixing type (propeller type, anchor type, frame type, screw type, etc.), supporting type (suspension type or support type) and packing sealing device, which can be set up separately with our factory. Plan.
